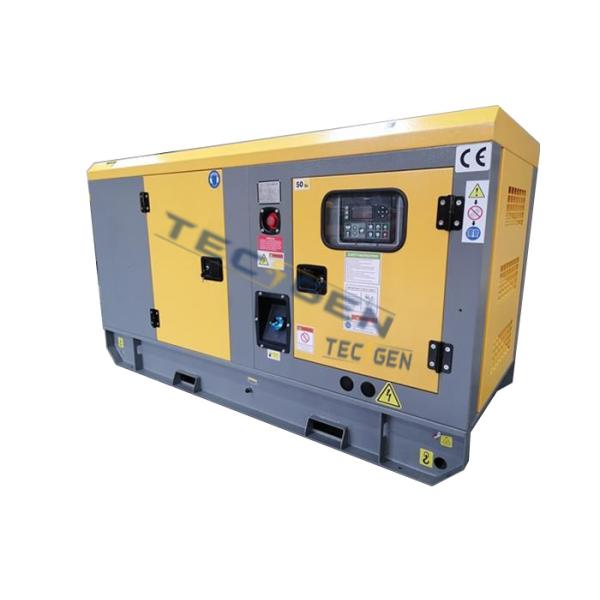

60kW Diesel generator Deutz diesel engine generator with 120A Wall-mounted ATS Box
The basic configuration for a diesel genset powered by a Deutz diesel engine includes:
- A brand-new Deutz water-cooled diesel engine with 4 cylinders and turbocharging.
- A brand-new AC alternator from STAMFORD / Leroy Somer / Mecc Alte / TECGEN, with ratings of 230/400V (confirmable and customizable), 3-phase, 50Hz, 1500Rpm, 0.8 power factor, IP23 protection, and H insulation class.
- A radiator with an engine-driven fan, mounted on a skid for efficient cooling.
- The genset is equipped with a DEIF SGC-420 auto start control panel from Denmark, conveniently mounted on the set.
- The set includes a CHNT brand circuit breaker for reliable electrical protection.
- Anti-vibration mountings are used to reduce vibrations and ensure smooth operation.
- The genset features a 12/24V DC electric start system, utilizing VARTA brand lead-acid type starting batteries.
- Industrial silencers with flexible connections and elbows are included for noise reduction.
- A base fuel tank is integrated into the genset, providing 8 hours of running time and equipped with a fuel gauge on the base frame.
- The genset comes with a test report, a set of drawings, and operation and maintenance manuals (O&M manuals).
- A standard tool kit is provided for basic maintenance and servicing.
Optional Supply:
- ATS (ATS box or ATS cabinet)
- Water Hearer / diesel water heater
- Integrated Fuel Tank
- Remote control by cell phone
- 12 / 24 running hours fuel tank
- Engine 3000 hours spare parts
- Canopy with customed material and colors
- Super Silent design with 60dB(A) at 7m
| 60kW Diesel Generator Set Datasheet |
| Genset Model | TG83DES |
| Rated Power | 60kW / 75kVA |
| Standby Power | 66kW / 83kVA |
| Governor | Electric |
| Frequency | 50Hz |
| Rated Voltage | 220 /380 V |
| Rated Current (A) | 114.0A |
| Dimension (mm) | L1650 x W700 x H900 |
| Gross Weight (kg) | 800 |
| Diesel Engine | Brand | Deutz |
| Model | BF4M2012C G1 |
| Configuration | Four-stroke,Water-cooling,Direct Injection |
| Rated Power | 70kW |
| Rated Speed (rpm) | 1500rpm |
| Cylinder No. | 4 |
| Bore*Stroke (mm) | 101 x 126 |
| Displacement(L) | 4.04 |
| Intake | Turbocharged |
| Fuel Consumption (g/Kw*h) | 221@100% load |
| Starting method | 24V DC |
| Alternator | Brand | Tecgen |
| Model | TGI224S60 |
| Rated Power | 75kVA |
| Materials | 100% pure copper |
| Efficiency | 92.50% |
| Voltage Regulation | <=±1 |
| Voltage Regulation | Brushless, Self-excitation |
| Insulation Class | H |
| Option brands | Stamford / Leroy Somer / Meccalte |
| Control System | Brand | DEIF |
| Model | DEIF SGC-420 |
| Working Voltage | DC8.0V to DC35.0V, continuous |
| Overall Dimensions (mm) | 233*38.5*173 |
| Panel Cutout (mm) | 219*158 |
| Working Condition | 0 to 95 % RH. To IEC 60068-2-78 |
| Functions | AMF/ATS |
| RS485 & CAN communication |
| 9 Inlet & 7 Outlet |
| PLC & BTN |
| Protections | Under-speed |
| Over-speed |
| Configurable crank connect |
| Battery monitoring |
| Charging alternator |
| Pre-heat |
| Coolant temperature |
| Lube oil pressure |
| Fuel level detection |
| Fuel theft detection |
| ECU communication failure |
| ECU diagnostic lamp |
| Option brands | Deepsea / Smartgen / ComAp / Mebay |
| Genset option equipment |
| Integrated-Fuel-Tank | ATS Box / Cabinet |
| PMG Alternator | Sync Panel |
| Trailer Type | Engine Heater |
| Water Heater | Fuel – Water Separator |
| Maintenance Timetable of Diesel Generating Set |
| Items | Job | Content | Everyday | Every Week | Every Month | Every Six Month | Every Year or 250 Hours |
| Lubricating System | Check | Oil leakage | √ | √ | √ | √ | √ |
| Level of engine oil | √ | √ | √ | √ | √ |
| Replace | Oil Filter | | | | √ | √ |
| Engine Olil | | | | √ | √ |
| Clean | Crankcase box | | | | √ | √ |
| Cooling System | Check | Oil leakage | √ | √ | √ | √ | √ |
| Radiator Block | | | √ | √ | √ |
| Soft Tube and Joint | | | √ | √ | √ |
| Fluid | | √ | √ | √ | √ |
| Antifreeze and Anticorrosion | | | √ | √ | √ |
| Belt Status | | | | √ | √ |
| Add Grease lubricant | Fan and Tensing | | | | √ | √ |
| Belt wheel | | | | √ | √ |
| Check | Driving Belt wheel and pump | | | | √ | √ |
| Replace | Cooling Liquid | Every 12 months |
| Clean | Cooling System |
| Airflow System | Check | Oil Gas | | | √ | √ | √ |
| Cleaner | | √ | √ | √ | √ |
| Pipe Fittings and Joint | | | | √ | √ |
| Replace | Core of Air Cleaner | | | | | √ |
| Fuel System | Check | Leakage | √ | √ | √ | √ | √ |
| Quality of Fuel | | √ | √ | √ | √ |
| Pump Nozzle | | | | | √ |
| Fuel pipe and Joint | | | | √ | √ |
| Oil Pump | | | √ | √ | √ |
| Discharged | Deposition of Fuel Tank | | | √ | √ | √ |
| Replace | Filter of oil | | | | √ | √ |
| Check | Nozzle | Every Two Years |
| Adjust | Value | | | | | √ |
60kW Diesel Generator Set Powered by Deutz Engine
1. Brand new water-cooled diesel engine with a 50 ºC tropical radiator.
2. Brand new brushless alternator with a 2-year warranty.
3. DEIF / DEEP SEA / ComAp / TECGEN POWER digital controller.
4. Maintenance-free starter battery and battery isolator switch.
5. Oil, coolant, fuel, and water drain on the base frame for easy cleaning.
6. Anti-vibration mountings for reduced noise and vibrations.
7. 0%, 25%, 50%, 75%, 100%, 110% loading test by load bank before shipping.
8. Generators equipped with 8-10 hours fuel tank.
9. General catalog in English in PDF format showcasing quality and manufacturing values.
10. Additional kit of filters and basic spare parts included.
11. 100% fire-resistant sound attenuation material for long-lasting noise reduction.
12. Manufactured in accordance with ISO9001-2008 and GB/T19001-2008 quality standards.
Optional:
1. Frequency options: 50Hz (380/220V, 400/230V, 415V/240V, 440V) or 60Hz (110/220V, 115/230V, 127/220V, 220/440V).
2. Single phase or three-phase configurations available.
3. Automatic Transfer Switch (ATS) option for seamless power transfer.
4. Water/Oil heater for improved performance in cold weather.
5. Genset container design available in 20FT/40HQ.
6. Customizable options to meet specific requirements.
FAQ:
1. Minimum order quantity: 1 set.
2. Payment terms: T/T, L/C.
3. Delivery time: 10-20 working days.
4. Port of loading: Fuzhou, China.
5. OEM and ODM supported.
6. Available colors: White, Blue, Red, Green, Yellow, Gray, etc.
7. Exported to Southeast Asia, Middle East, Africa, Europe, North and South America, Oceania.
8. Certifications: ISO9001-2008, ISO14001-2004, CE, etc.
9. Packaging: Stretching film (plywood crate optional).
10. Validity period of the offer: 30 days.
